Glass Systems
Transform your spaces with our premium glass systems, designed to enhance comfort and style for modern living.

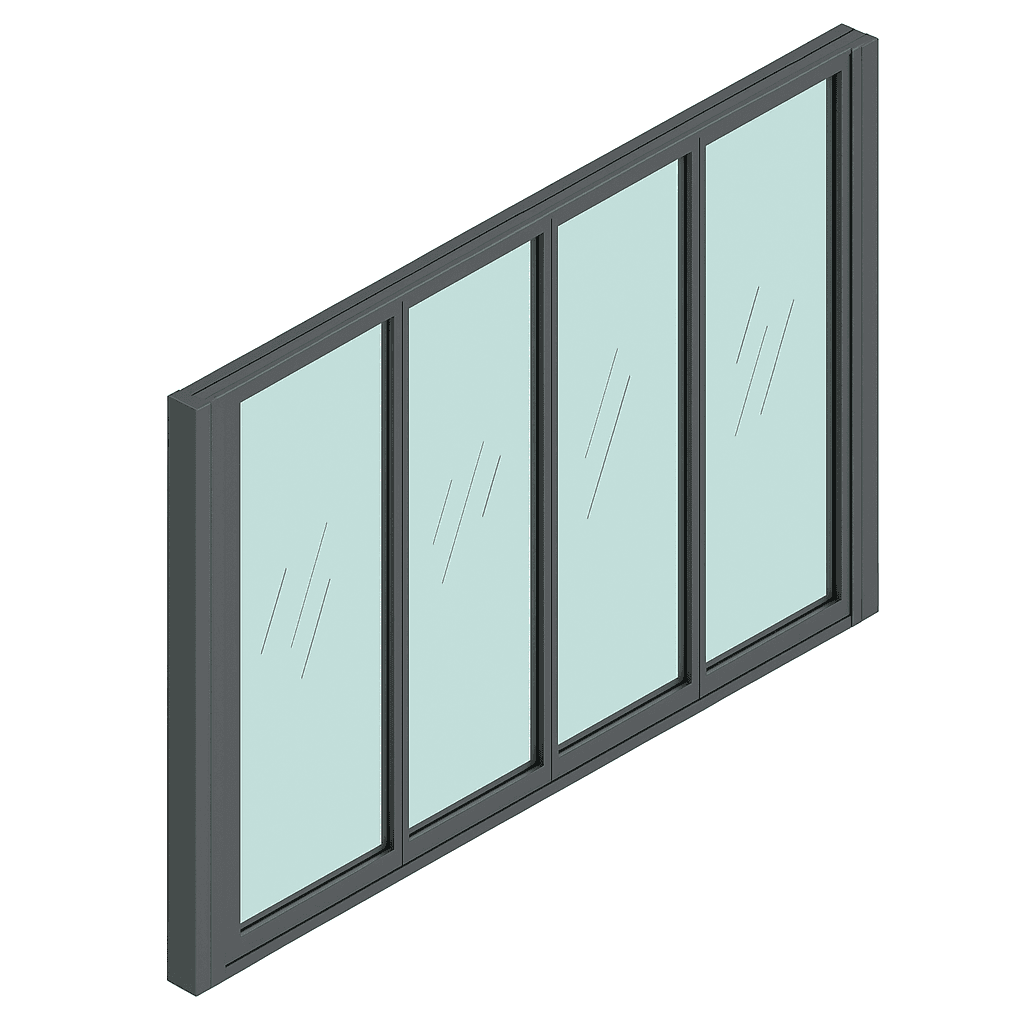

Luxa FrontSlide Glass
Premium sliding glass systems for seamless indoor-outdoor transitions
Luxa FrontFold Glass
Versatile folding glass systems for maximum opening flexibility

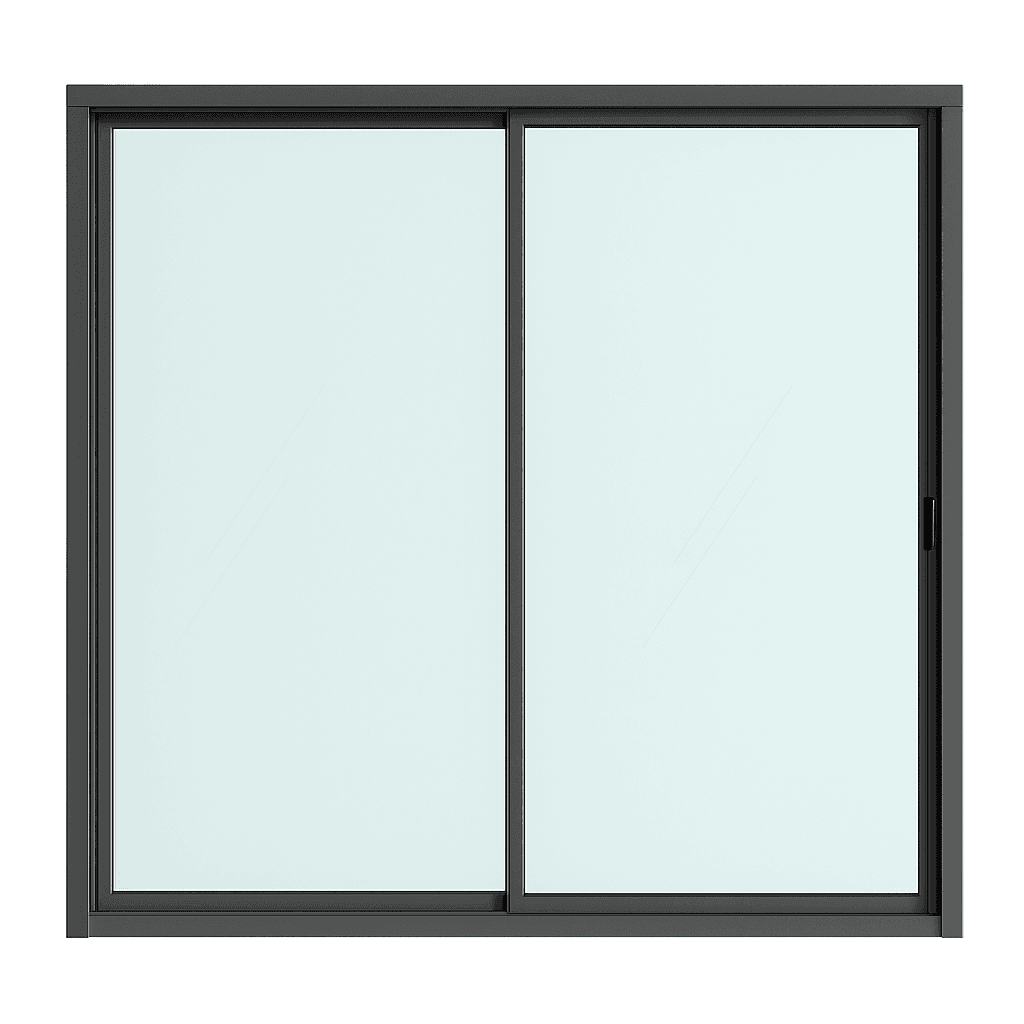

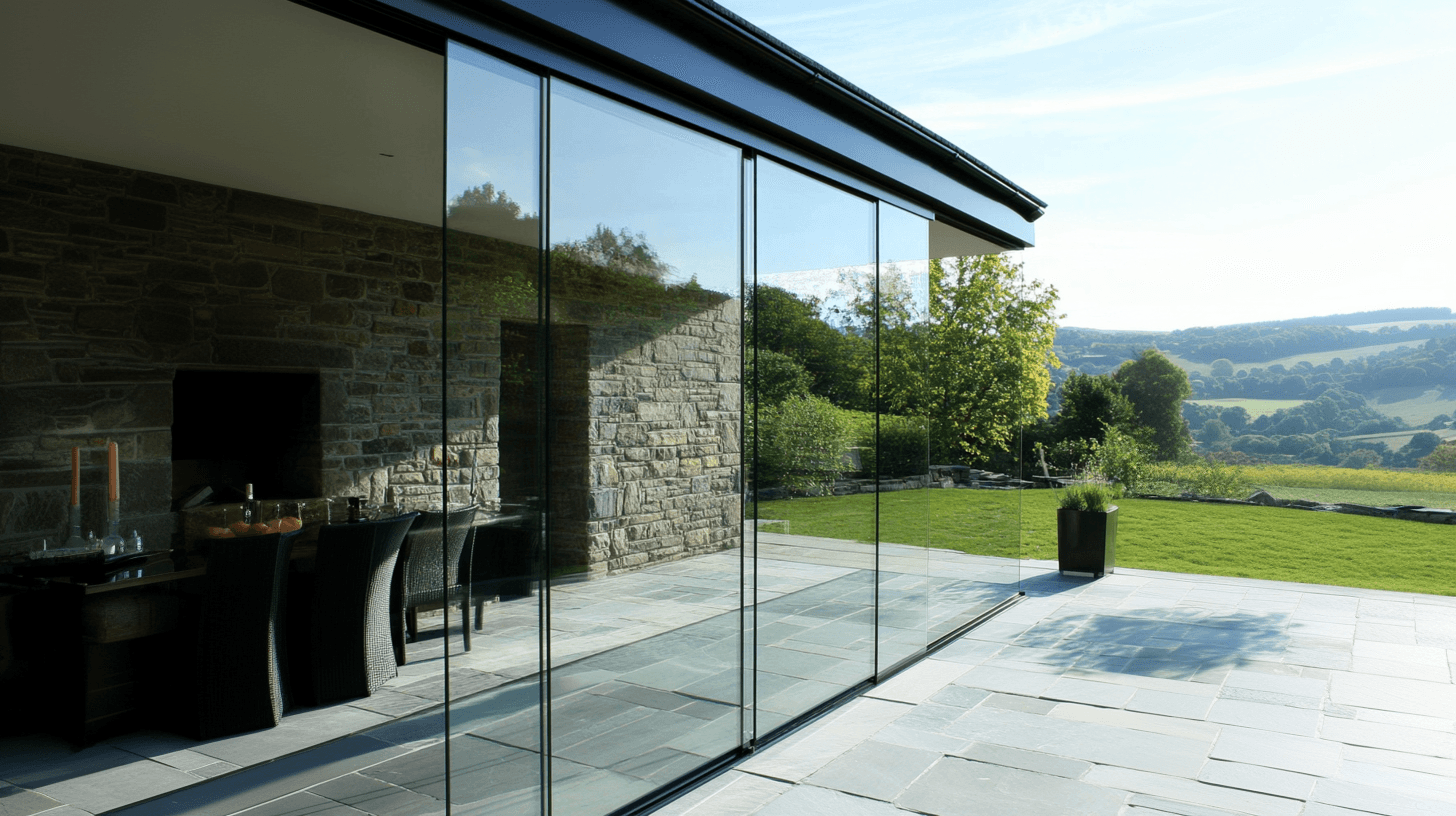

Luxa FrontSlide Glass
The Ultimate Sliding Glass System for Seamless Spaces
Product Overview
Elevate your outdoor and indoor spaces with Luxa FrontSlide, a cutting-edge sliding glass system designed for effortless operation, modern aesthetics, and maximum functionality. Whether for cafés, restaurants, hotels, terraces, or office partitions, this innovative system allows you to transform open spaces into enclosed areas and back again with ease.
Superior Engineering for Effortless Sliding
- Unique high-capacity wheels designed to carry panels up to 150 kg, ensuring smooth and reliable operation.
- Optimized panel dimensions to prevent excessive strain on the system, enhancing durability and performance.
- Patented lower and upper guide wheels ensure seamless movement, even for larger panel sizes.
Flexible Design for Various Applications
- Supports 3, 4, or 5-panel configurations, with additional options like 3+3, 4+4, or 5+5 layouts for expanding larger spaces.
- Ideal for commercial and residential settings, including cafés, hotels, restaurants, garden enclosures, and office partitions.
- Effortless installation and weather-resistant materials ensure long-lasting performance in challenging outdoor conditions.
Dual Glazing & Enhanced Security
- Compatible with both single and double glazing, offering superior insulation and noise reduction.
- Advanced locking mechanism provides extra security compared to conventional sliding systems.
- Stainless steel rails on the lower track increase durability, ensuring smooth movement and extended wheel life.
Technical Specifications
Product Highlights
- Material:Aluminium, Glass
- Max Expansion:6000mm
- Recyclable:98%
- System:Sliding glass system
Dimensions
| Min | Max | |
|---|---|---|
| Width | 1500mm | 6000mm |
| Height | 1000mm | 3000mm |
| Panel Width | 1200mm | |
| Total Surface | 18m² | |
System dimensions must remain between the minimum and maximum dimensions given above. The total area of a system cannot exceed 18 meters squared.
System Configurations

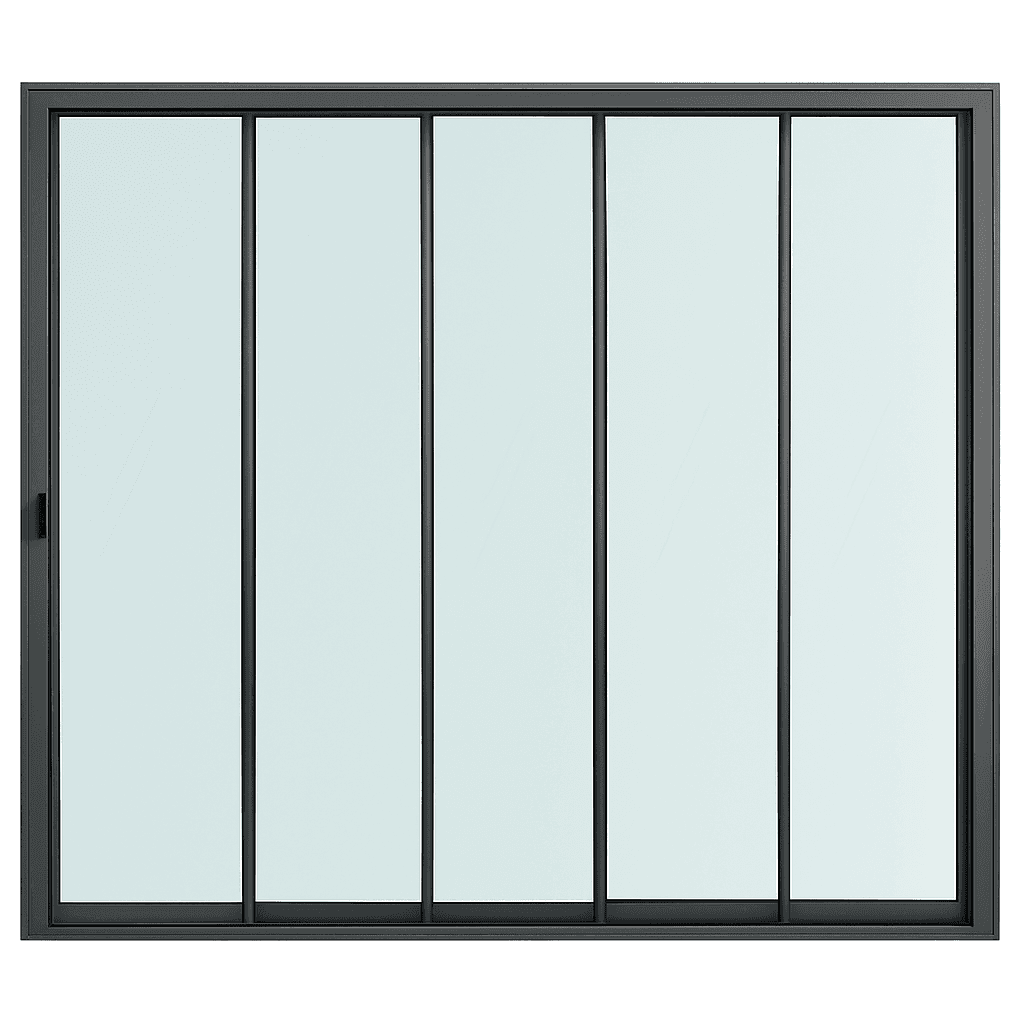

Luxa FrontSlide Single Glass 5 Rail System
Our most expansive configuration, perfect for large openings where maximum flexibility is required.
- Width: 2500mm - 6000mm
- Height: 1000mm - 3000mm
- Total Surface: 18m²

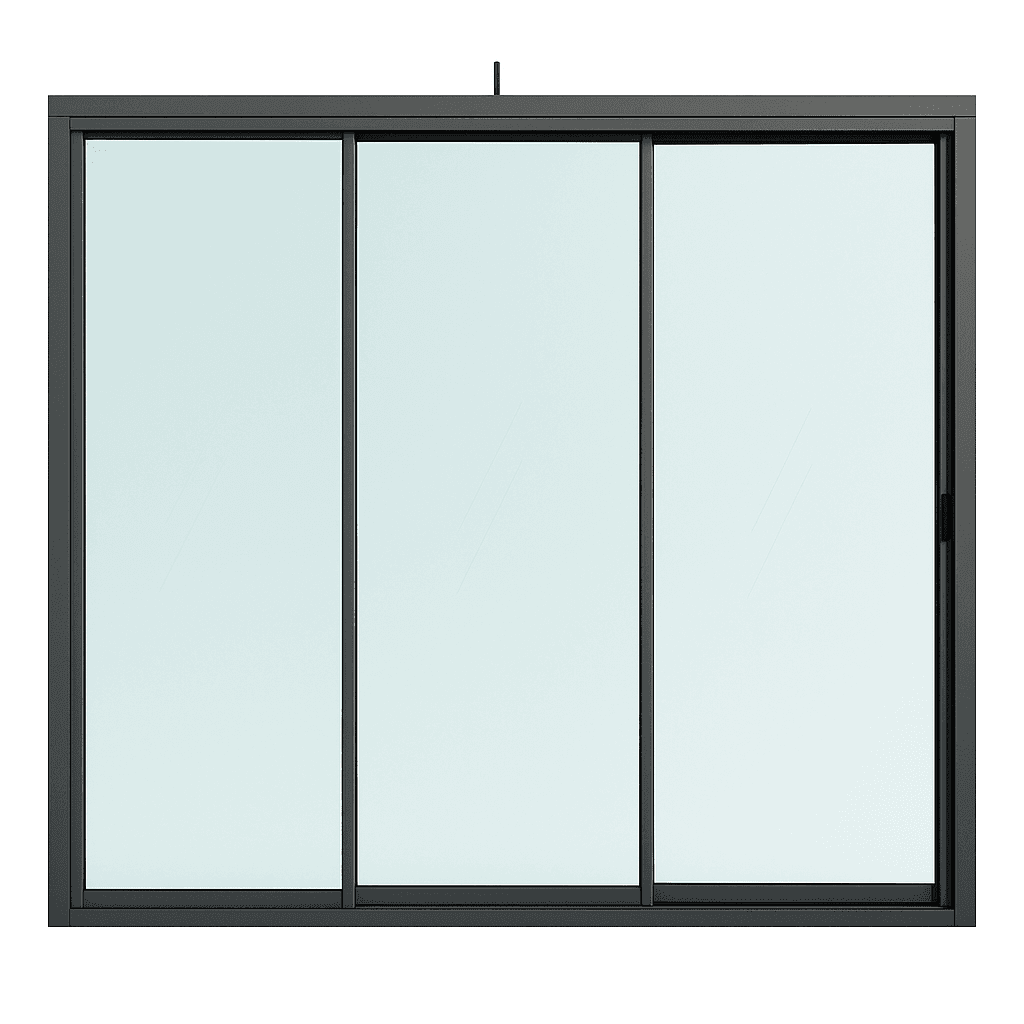

Luxa FrontSlide Single Glass 3 Rail System
Compact and efficient, ideal for smaller spaces while maintaining the elegant aesthetic.
- Width: 1500mm - 3750mm
- Height: 1000mm - 3000mm
- Total Surface: 11m²

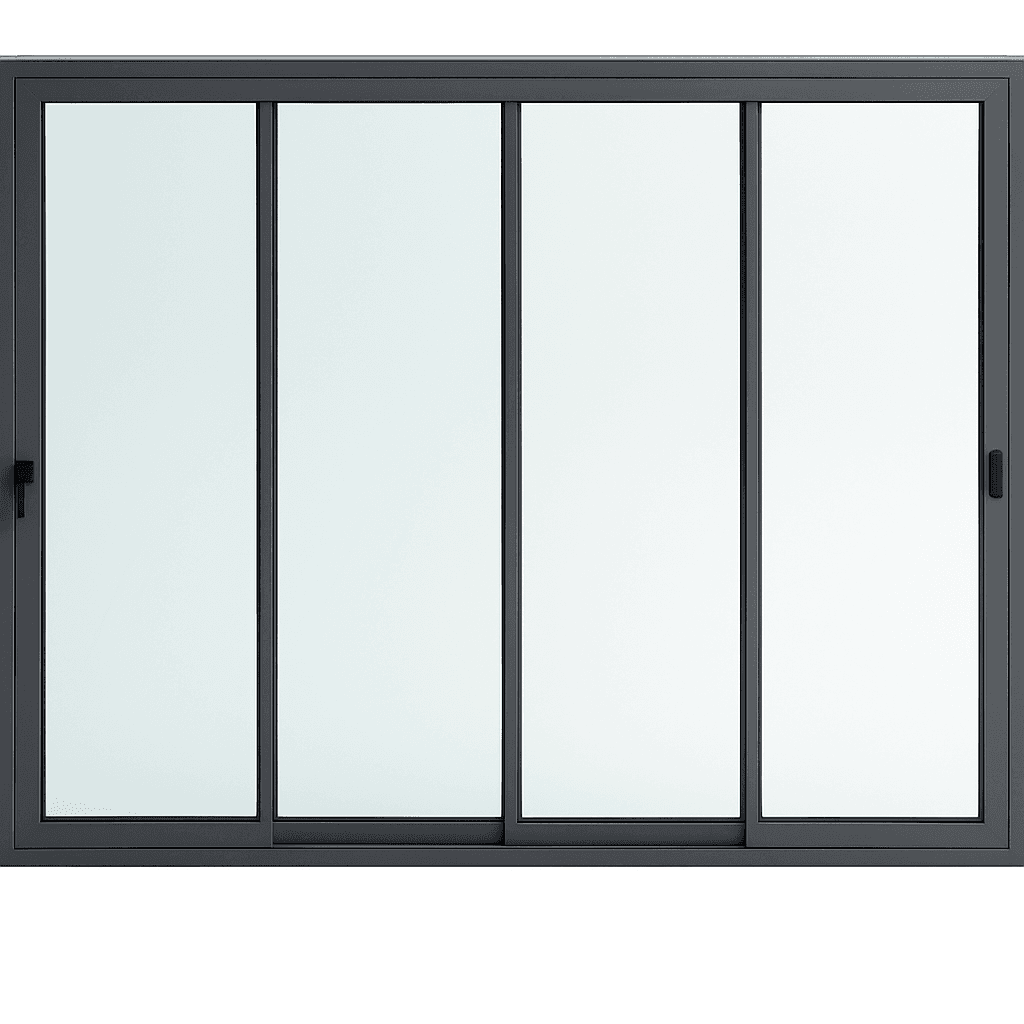

Luxa FrontSlide Thermal Glass 4 Rail System
Enhanced thermal insulation for year-round comfort in any climate condition.
- Width: 2000mm - 5000mm
- Height: 1000mm - 3000mm
- Panel Width: 1200mm
- Total Surface: 15m²
Powder Coating
Premium QUALICOAT lacquering ensures long-lasting, high-quality finishes.
RAL 9016 Matt White
RAL 7016 Matt Anthracite Grey
RAL 9006 Matt White Aluminium
Special colors and textures available upon request.

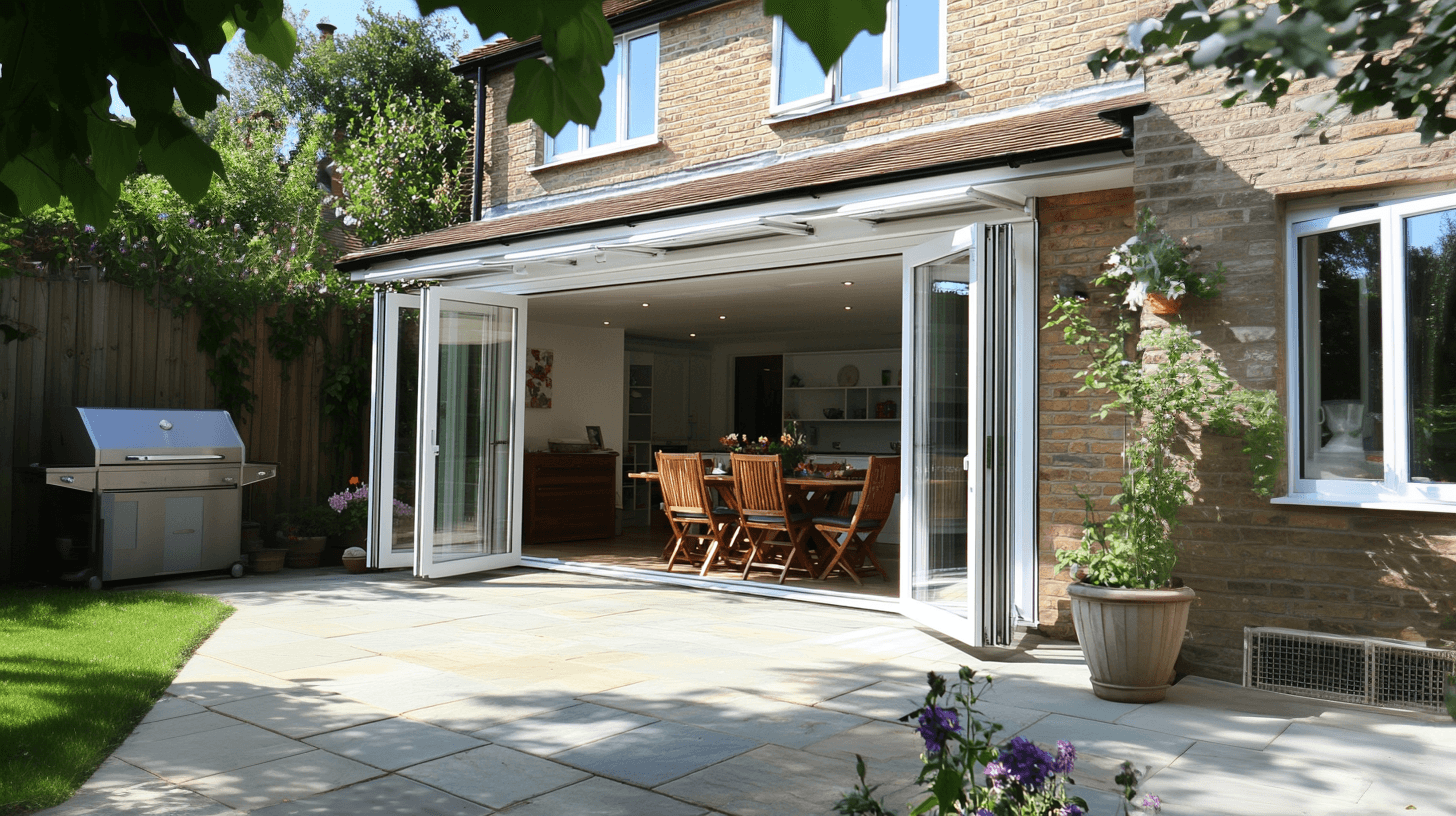

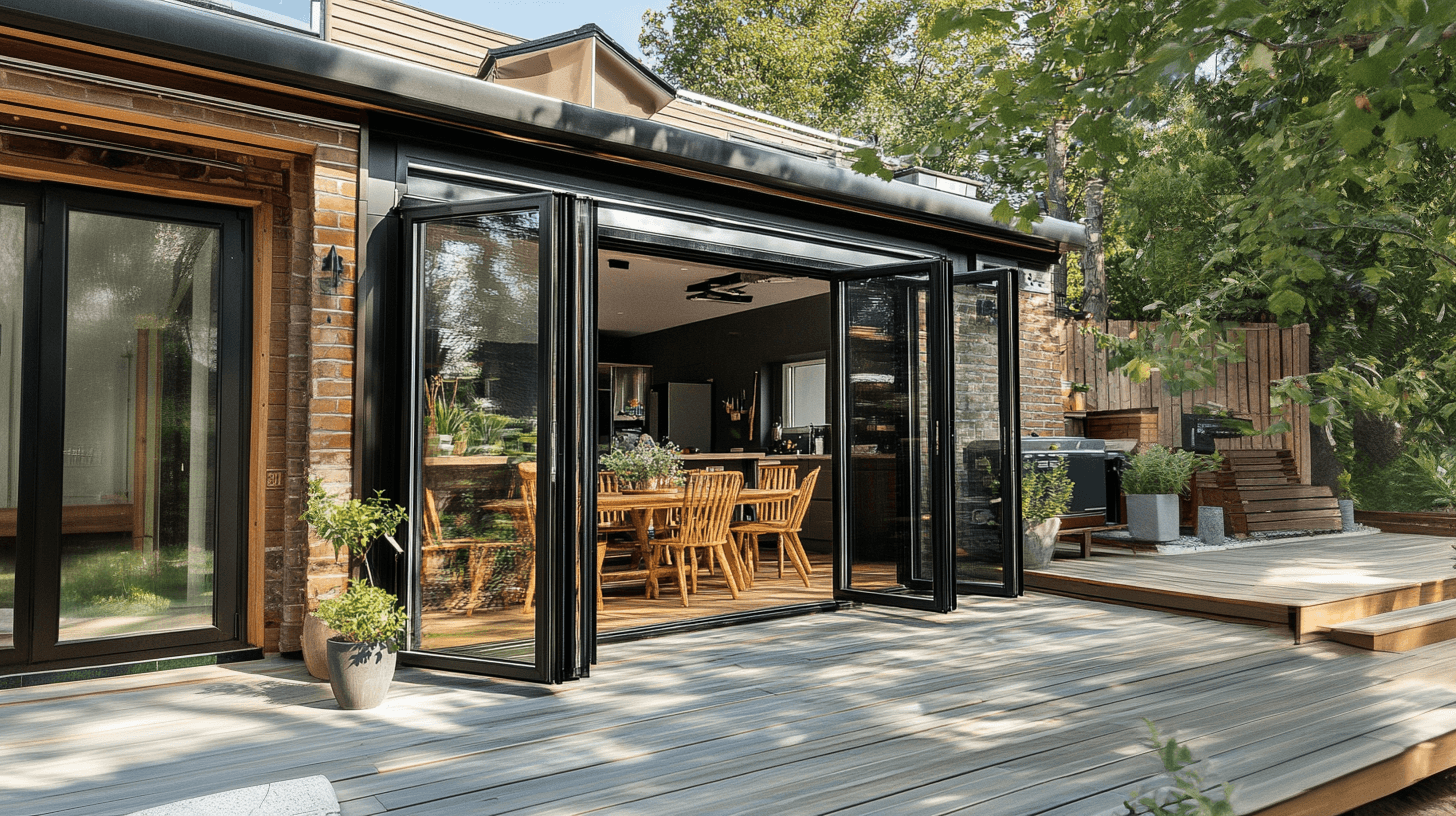

Luxa FrontFold Glass
The Ultimate Folding Glass Solution
Product Overview
Luxa FrontFold is a premium folding glass system that offers unparalleled flexibility and elegance for both residential and commercial spaces. With its innovative design, this system allows you to completely open up your space, creating a seamless transition between indoor and outdoor environments. The system's sophisticated engineering ensures smooth operation, durability, and weather resistance, making it perfect for year-round use in various climates.
Superior Design & Functionality
- Maximum Opening: Up to 95% of the aperture can be opened, creating a truly seamless indoor-outdoor experience.
- Flexible Configuration: Available in various panel arrangements with both inward and outward folding options.
- Smooth Operation: High-quality stainless steel rollers and precision-engineered tracks ensure effortless movement even for large panels.
Premium Quality & Security
- Weather Resistance: Advanced sealing technology provides excellent protection against wind, rain, and noise.
- Enhanced Security: Multi-point locking systems and toughened safety glass ensure peace of mind.
- Thermal Efficiency: Optional double glazing and thermal breaks provide excellent insulation properties.
Technical Specifications
Product Highlights
- Material:Aluminium, Tempered Glass
- Max Expansion:7000mm
- Recyclable:98%
- System:Inward or outward folding
Dimensions
| Min | Max | |
|---|---|---|
| Width | 1200mm | 7000mm |
| Height | 1000mm | 3000mm |
| Panel Width | 600mm | 1000mm |
| Total Surface | 21m² | |
System dimensions must remain between the minimum and maximum dimensions given above. The total area of a system cannot exceed 21 meters squared.
System Configurations
3-3 Panel Configuration
Perfect for medium-sized openings, this configuration features three panels folding in each direction from the center, providing a balanced and symmetrical appearance.
- Max Width: 6000mm
- Ideal for: Patios, balconies, room dividers
5-0 Panel Configuration
This asymmetrical configuration features five panels folding to one side, ideal for spaces where you need to maximize the opening in one direction.
- Max Width: 5000mm
- Ideal for: Storefronts, cafés, residential openings
4-3 Panel Configuration
This versatile configuration offers a slightly asymmetrical design with four panels folding to one side and three to the other, perfect for larger openings.
- Max Width: 7000mm
- Ideal for: Large terraces, restaurants, event spaces
Powder Coating
Premium QUALICOAT lacquering ensures long-lasting, high-quality finishes.
RAL 9016 Matt White
RAL 7016 Matt Anthracite Grey
RAL 9006 Matt White Aluminium
Special colors and textures available upon request.
